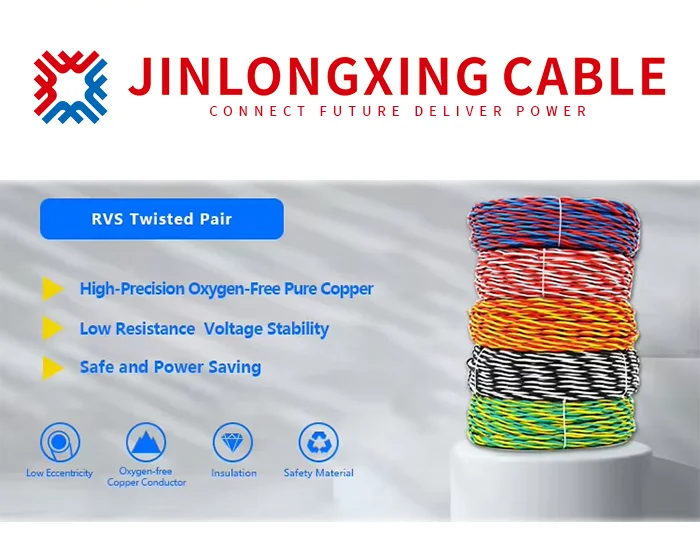

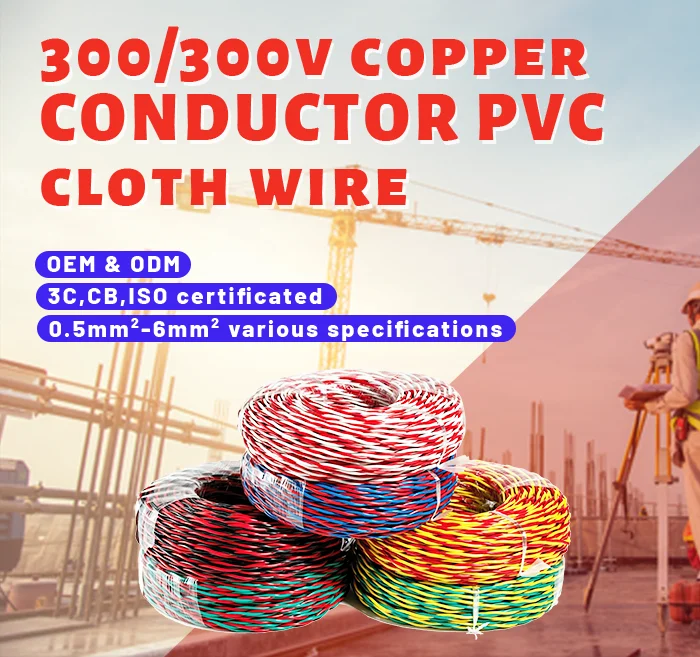

RVS
Standards: GB/T 5023-2008 / IEC 60227

Product name:
Twisted pair PVC insulated connecting wire

Rated Voltage: 300/300V
Conductor: Oxygen-free copper
Conductor Class: Class 2 stranded (IEC 60228)
Insulation: PVC, multi-color available
Sheath: No outer sheath

Application: Fire alarm wire, speaker line, intercom signal wiring

Inquiry

Description

Products Description

Product Highlights

Excellent anti-interference ability:By twisting two insulated flexible wires together at a certain pitch, the electromagnetic fields generated can cancel each other out, effectively reducing external electromagnetic interference and crosstalk between cables.

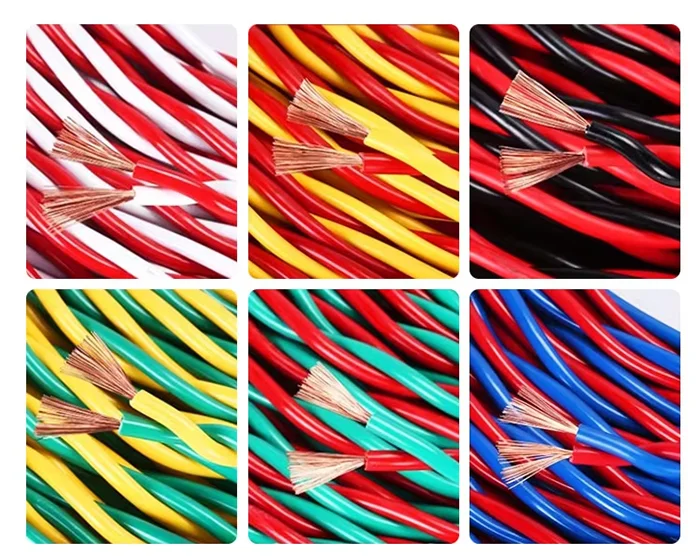

Excellent flexibility and ease of construction:Using multiple strands of fine copper wire twisted into a composite conductor, combined with a PVC insulation layer, makes the wire very soft. Easy to navigate and bend in narrow pipelines, wall gaps, or complex spaces, greatly reducing construction difficulty.
Economy and portability:Compared with RVV (sheathed wire), RVS has no outer sheath, lighter weight, and relatively lower material cost. It is a cost-effective choice in scenarios where no additional physical protective layer is required, such as buried walls and pipes.
High recognition and clear purpose:Common red blue cores, red black cores, or blue white cores are convenient for quickly distinguishing positive and negative poles or signal polarities during installation. Due to its wide application in the field of fire protection, technicians can immediately recognize the use of twisted pair cables as signal lines or fire circuits.
What is RVS wire?
RVS cable is a PVC insulated soft copper twisted pair cable commonly used for low-voltage electrical connections, signal transmission, and control circuits.

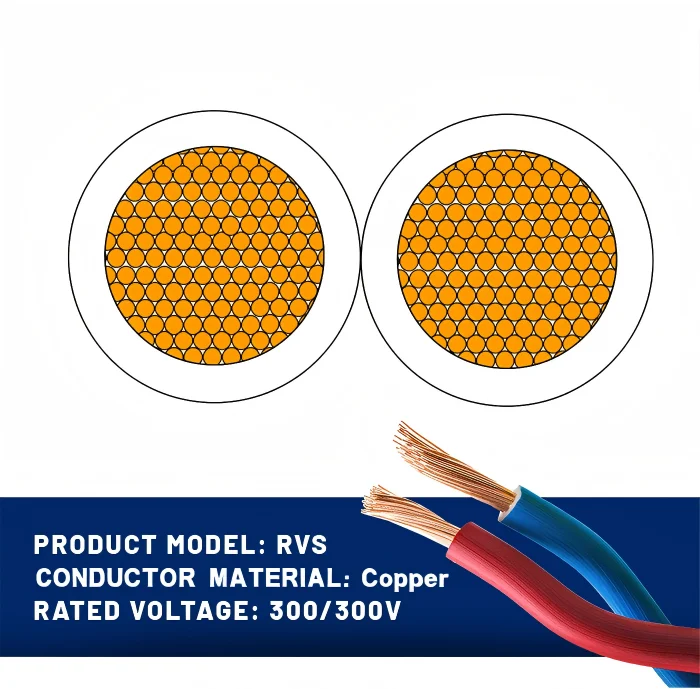

R:Flexible stranded multi strand copper conductorV: Polyvinyl chloride insulationS: Twisted pair structure
Application scenariosSignal system: fire alarm, safety system, and intercom. Control circuit: wiring for automation systems, sensors, and PLCs. Low voltage lighting: connection between LED lighting and decorative lighting fixtures. Household appliances: Internal wiring of household devices.

Why choose RVS cable?


EMI Reduction: Twisted pair structure minimizes signal interference.
Flexibility: Ideal for applications requiring frequent bending or movement.
Cost-Effective: Affordable solution for low-voltage signaling and control.
Ease of Installation: Lightweight and easy to handle.

RVS cable is suitable for low-voltage applications where flexibility and EMI reduction are important.You can choose a better level of protection as needed, considering using NH-RVS (fire-resistant) and ZC-RVS (flame-retardant), or using RVS wires with additional protection when used outdoors. Customizable conductor sizes (e.g. 2 × 0.5mm ² to 2 × 2.5mm ²) are available. Please refer to the technical data sheet for detailed information.
Product Specifications
Brand Name
JINLONGXING CABLE
Product Name
Copper core PVC insulated twisted connection flexible wire
Number of cores
2-cores
Conductor material
Oxygen-free copper
Max.operating temperature
90℃（105.125.150℃ is available）
Max.short circuit operating temperature in 5s
160℃
Min.lay temperature
0℃
Min.bending radius
4D (cable outer diameter D＜25mm),6D (cable outer diameter D≥25mm)
Sheath Material
PVC
Specification
0.5mm² — 6mm²
Adapt to voltage
Uo/U300/300V
Customization
You can choose the fire-resistant type (NH-RVS) or flame-retardant type (ZC-RVS) with better protection level according to your needs
GB5023   JB8734   RVS   300/300V
Nominal
Cross-section
(mm²)
Toplimit of
overall
diameter
(mm)
Insulation
Nominal
Thickness
（mm）
Approx outer diameter
(mm)
Min.insulation resistance
at 70℃
（Ω/km）
Max.D.C
resistance
at 20℃
（Ω/km）
Current
ratings in air
（A）
2×0.5
 6.0
0.8
5.0
0.016
39.0
12
2×0.75
6.2
0.8
5.4
0.014
26.0
16
2×1
6.6
0.8
5.7
0.013
19.5
18
2×1.5
7.2
0.8
6.3
0.012
13.3
23
2×2.5
8.2
0.8
7.2
0.0095
7.98
31
2×4
9.2
0.8
8.3
0.0079
4.95
41
2×6
10.2
1.0
10.1
0.0081
3.30
52

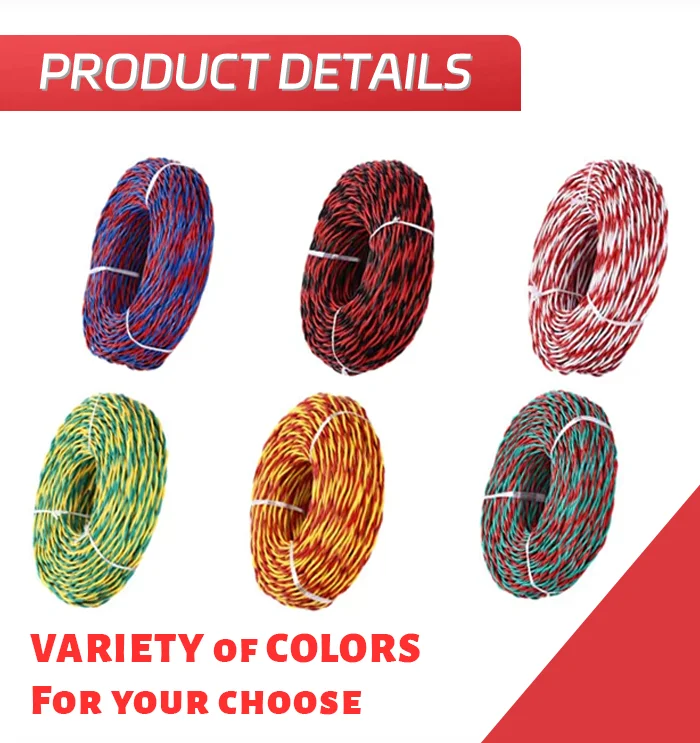

Product Details

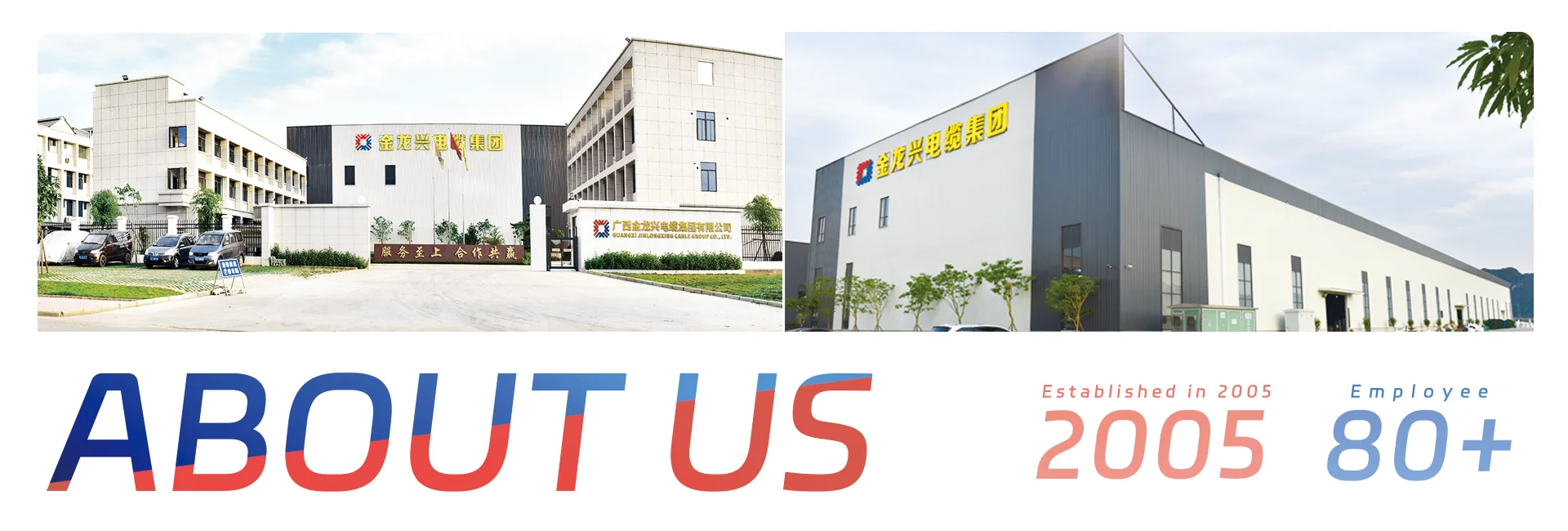

Company Profile

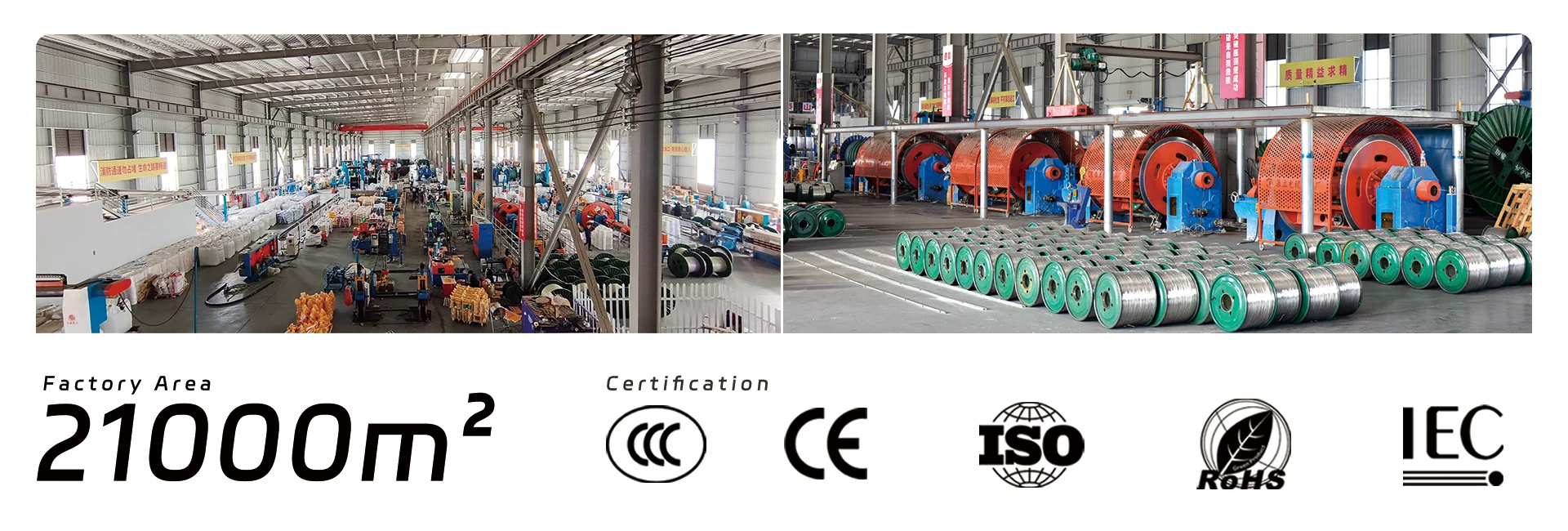

Guangxi Jinlongxing Cable Group Co., Ltd. is a national innovative technology cable enterprise located in the core area of the Guangxi Fusui ASEAN Economic Circle. We have been deeply involved in the industry for 21 years, with a modern industrial park of over 20000 square meters, forming an integrated manufacturing system for research and development, production, and testing.The company specializes in a full range of copper and aluminum core cables, covering distributed wires, power, control, mineral insulation, and flame-retardant and fire-resistant special cables, covering all voltage levels of 35kV and below, and can provide complete cable matching solutions.The enterprise is equipped with intelligent production lines and professional testing centers, with full process quality control,ISO system certification, multiple patents, and authoritative certifications such as 3C and CB at home and abroad. The products comply with national standards and IEC international standards. Relying on its location advantage, the product is popular inSoutheast Asia and widely used in infrastructure, industrial, and civil construction fields.
Company Honors and Certificates
FAQ

Q:Are you a manufacture or trading company？

A:We are a professional manufacturer. We can control your order from start to finish. Welcome to collaborate. We will pick you up in Nanning, Guangxi.

Q:How can I get a sample to test your quallty?

A:The samples are free, and you only need to pay for the shipping fee.

Q:What's your MInimum Order Quantity?

A:Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the highfreight. Sea
transportation is the best option.

Q:Can I get a discount?

A:It depends on your quantity, we can offer a discount. Please contact us.

Q:Do you provide OEM project services?

A:We warmly welcome OEM and ODM cooperation and have mature experience in customized projects. Our professional R&D team can provide technical solutions and customized suggestions according to your needs.

Q:What about the delivery time, packaging method, and transportation method after payment?

A:Mode of transportation:
You can choose sea freight, alr freight, or international express delivery. International express delivery supports DFedEx,
UPS,TNT, etc. You can choose the most suitable channel on your own.

Packaging method: Adopting standard export packaging. moisture-proof and pressure resistant, sturdy and durable, meeting
internationallogistics requirements Simuttaneously supporting customized packaging (ogo, identification, outer box
specifications,etc).

Delivery cycle:
Sample: 1-3 days
Small orders: 3 to 10 days
Large orders: 10 to 18 days
The overall delivery time is generally10-20 days, depending on the order quantity, production schedule, and product
specifications.
