BVR / H05V‑R / H07V‑R
Standards: GB/T 5023‑2008 / IEC 60227‑1

Product name:
Flexible single‑core PVC insulated building wire
Rated Voltage:
300/500V (H05V‑R) / 450/750V (BVR, H07V‑R)

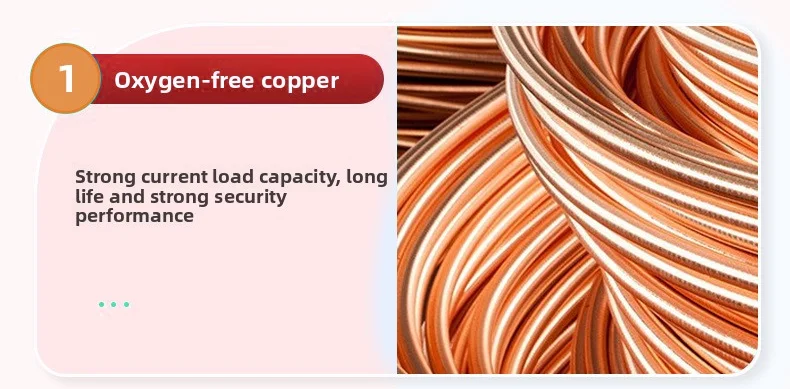

Conductor: Oxygen‑free copper
Conductor Class: Class 2 stranded (IEC 60228)

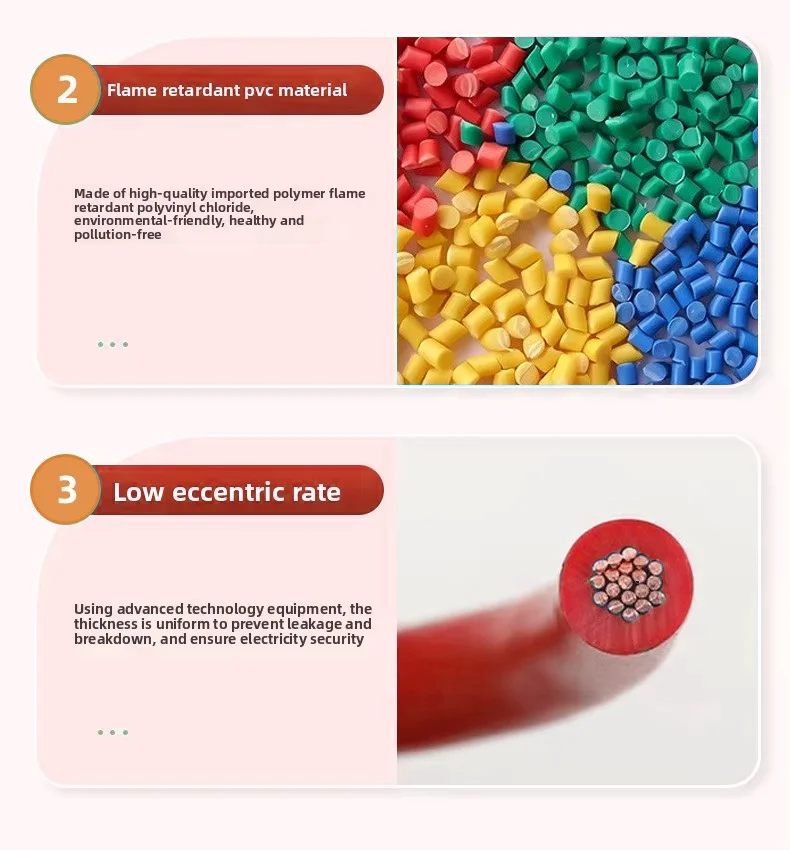

Insulation: PVC, multi‑color available

Application:Distribution box wiring, household flexible wiring, complex wiring layout

Inquiry

Description

Products Description

Product Highlights

Extremely high flexibility:Due to the fact that conductors are made up of multiple thin copper wires twisted together, wires are very flexible. BVR is extremely easy to bend, does not require specialized bending tools, and does not generate strong rebound force like hard wires.
High construction efficiency:In complex conduit, BVR flexible wire is easier to pull than hard wire. When forcibly threading, it is less likely to wear down the polyvinyl chloride (PVC) insulation layer on the surface of the wire, reducing the risk of electrical leakage and greatly reducing the difficulty of construction.
Resistance to mechanical fatigue and vibration:BVR flexible wire has extremely strong fatigue resistance and can withstand multiple repeated bending. In equipment environments with slight vibrations, such as distribution cabinets, motor connections, and switch boxes, BVR is less likely to experience loose joints or wire breakage due to vibration.
Relatively better heat dissipation:Although BVR and BV DC resistance with the same cross-sectional area are theoretically consistent, BVR is composed of multiple fine wires, and its total conductor surface area is larger than that of a single hard core. This makes its heat dissipation more uniform and its physical properties more stable in certain environments.
Suitable for complex power distribution:BVR can perform various angles of bridging and bending, with a beautiful and compact layout. BVR can provide very reliable electrical connections.

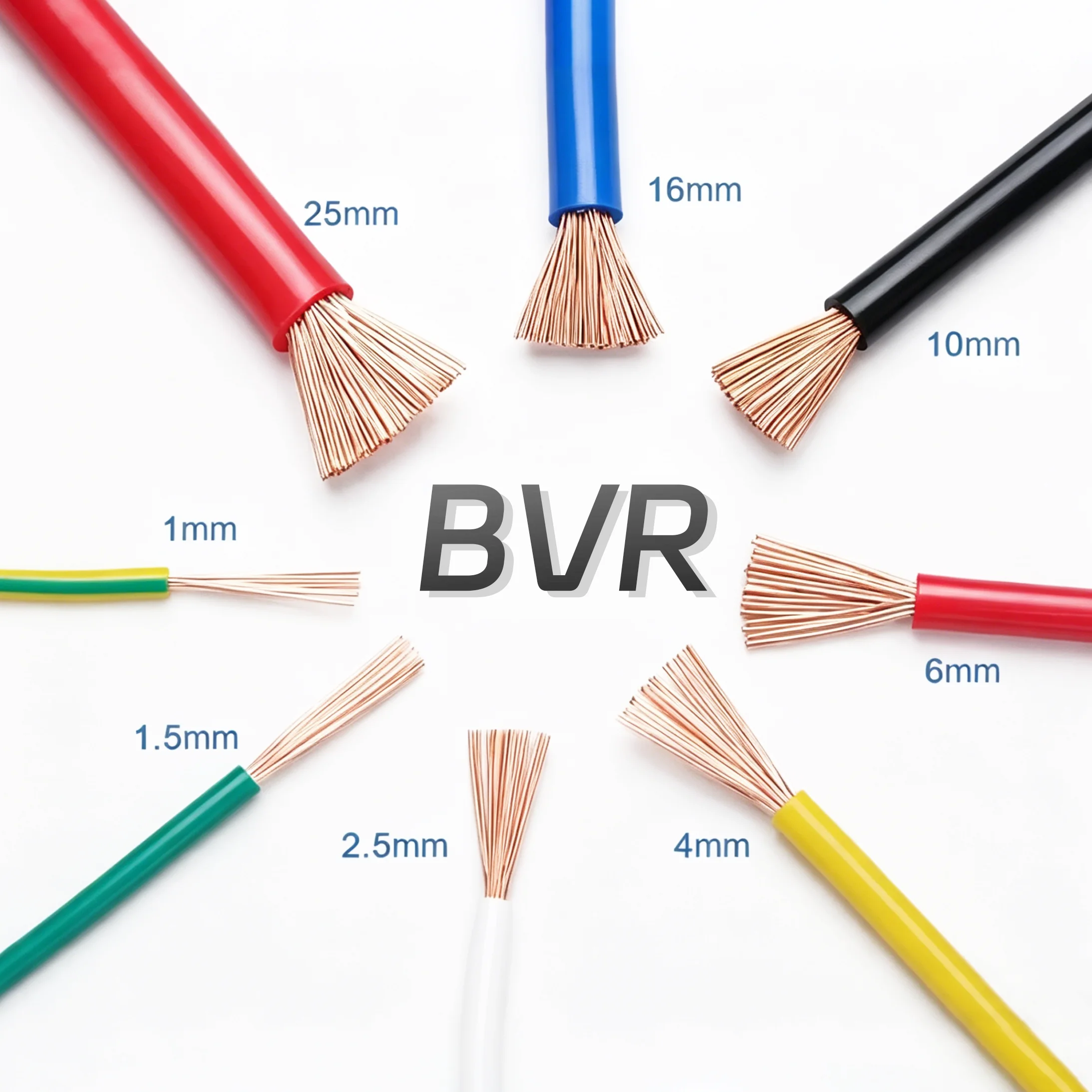

What is BVR wire?
BVR cable is a PVC insulated flexible copper wire designed for electrical installations that require flexibility and ease of installation. B: Insulated wire (Chinese standard name) V: PVC (polyvinyl chloride) insulation R: Soft copper wire (multi strand copper wire)Application scenariosBuilding wiring: Fixing circuits in residential, commercial, and industrial buildings that require flexibility. Distribution: wiring of distribution boards, switches, and sockets. Control system: Control wiring for mechanical equipment. Temporary installation: wiring and temporary power supply at the construction site.

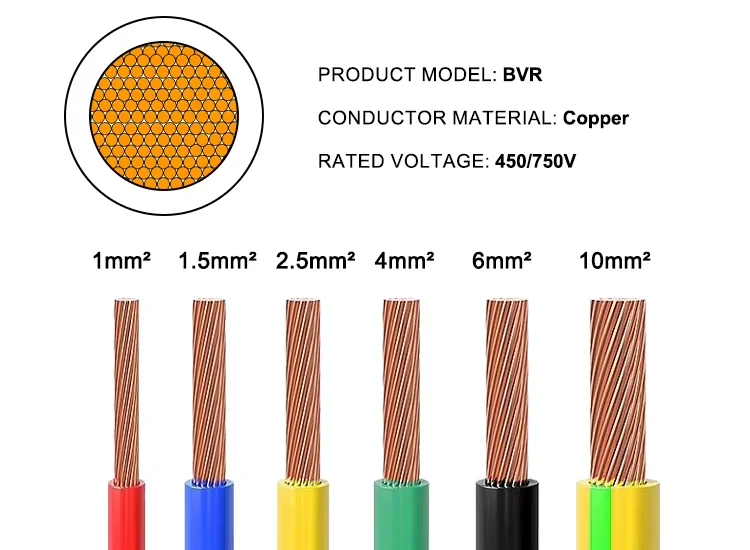

Product Specifications
Brand Name
JINLONGXING CABLE
Product Name
Copper core PVC insulated flexible wire
Insulating Material
XLPE
Conductor material
Oxygen-free copper   optional   Aluminium
Sheath Material
PVC
Specification
1.5mm² — 400mm²
Rated Voltage
450V—750V   optional   300V—500V
Insulation color
 As per request
Customization
You can choose flame retardant and fire-resistant types with better protection levels according to your needs（ZC-BVR or NH-BVR）
Rated voltage
Nominal
cross-section
（mm²）
Insulation
thickness
Maximum DC resistance
at 20℃
(Ω/ km)
Minimum insulation resistance
(70℃ )
(MΩ/km)
In Air current
ratings at 25℃
(A)







450/750V
2.5
0.8
7.41
0.010
34
4
0.8
4.61
0.0079
45
6
0.8
3.08
0.0068
58
10
1.0
1.83
0.0065
80
16
1.0
1.15
0.0054
111
25
1.2
0.727
0.0051
155
35
1.2
0.524
0.0043
192
50
1.4
0.387
0.0042
232
70
1.4
0.268
0.0036
298
95
1.6
0.193
0.0036
362
120
1.6
0.153
0.0033
420
150
1.8
0.124
0.0033
484
185
2.0
0.0991
0.0033
553
Product Details
